Partitions

Clipper Elance

Unique slim aluminum extrusion accommodates single, offset, and double glazed glass panels. Aluminum extrusions are offered in a range of both anodized and painted finishes.

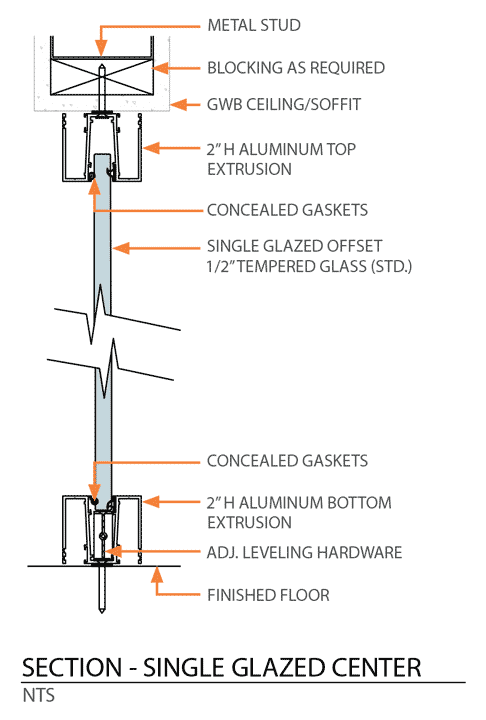

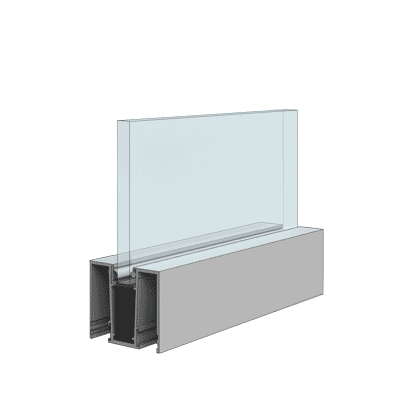

Elance Single Glazed Center

DOOR TYPES
SLIDING OR PIVOT, FRAMELESS OR FRAMED ALUMINUM
SOLID PAINTED OR SOLID VENEER
DROP SEAL AVAILABLE ON ALL FRAMED DOORS (EXCLUDING SLIDING)
HARDWARE
LOCKING AND NON LOCKING
MORTISE LOCK COMPATIBILITY – CODE COMPLIANT FOR LOCATION
GLASS
1/2” TEMPERED GLAZING (MAX HEIGHT 10’-0”H)
INTEGRATION OF CUSTOM GLASS AVAILABLE
STC RATING
SEE STC GLASS CHART
TOLERANCE
+/- 3/4” OVER 10 LINEAR FEET AT FLOOR

FEATURES + BENEFITS OF CLIPPER ELANCE

  • Unique ability to convert from single glazed offset to double glazing in one slim extrusion profile.
  • Tight concealed gaskets
  • Flexible Leveling system for floor adjustability
  • Slim framed sliding and pivot doors
  • Code compliant engineering
  • Range of door types and finishes
    Competitive Pricing
  • Experienced In house team by top dealer
Documents
Name Download File Size
Clipper STC Ratings
Download 64.7 KB

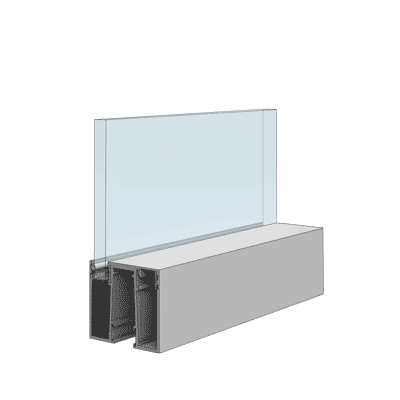

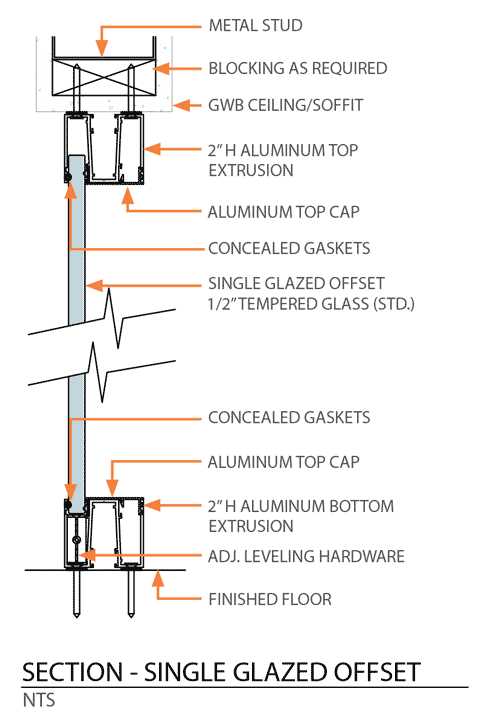

Elance Single Glazed Offset

DOOR TYPES
SLIDING OR PIVOT, FRAMELESS OR FRAMED ALUMINUM
SOLID PAINTED OR SOLID VENEER
DROP SEAL AVAILABLE ON ALL FRAMED DOORS (EXCLUDING SLIDING)
HARDWARE
LOCKING AND NON LOCKING
MORTISE LOCK COMPATIBILITY – CODE COMPLIANT FOR LOCATION
GLASS
1/2” TEMPERED GLAZING (MAX HEIGHT 10’-0”H)
INTEGRATION OF CUSTOM GLASS AVAILABLE
STC RATING
SEE STC GLASS CHART
TOLERANCE
+/- 3/4” OVER 10 LINEAR FEET AT FLOOR

FEATURES + BENEFITS OF CLIPPER ELANCE

  • Unique ability to convert from single glazed offset to double glazing in one slim extrusion profile.
  • Tight concealed gaskets
  • Flexible Leveling system for floor adjustability
  • Slim framed sliding and pivot doors
  • Code compliant engineering
  • Range of door types and finishes
    Competitive Pricing
  • Experienced In house team by top dealer
Documents
Name Download File Size
Clipper STC Ratings
Download 64.7 KB

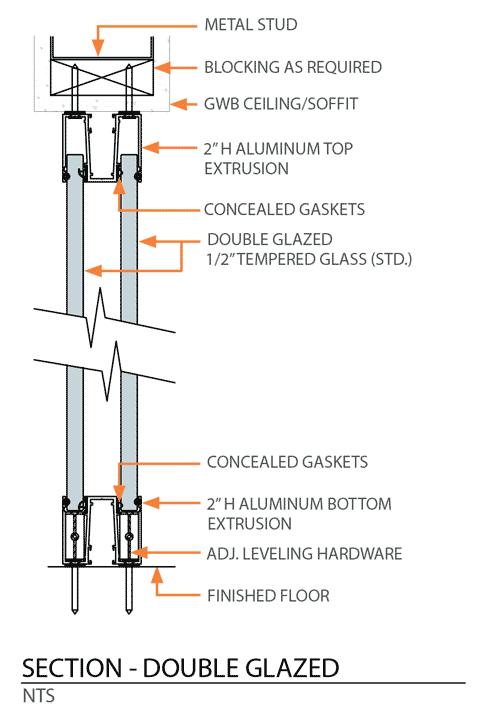

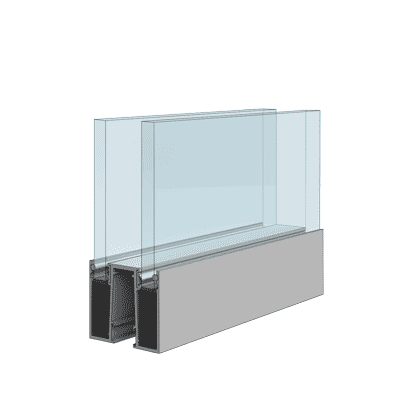

Elance Double Glazed

DOOR TYPES
SLIDING OR PIVOT, FRAMELESS OR FRAMED ALUMINUM
SOLID PAINTED OR SOLID VENEER
DROP SEAL AVAILABLE ON ALL FRAMED DOORS (EXCLUDING SLIDING)
HARDWARE
LOCKING AND NON LOCKING
MORTISE LOCK COMPATIBILITY – CODE COMPLIANT FOR LOCATION
GLASS
1/2” TEMPERED GLAZING (MAX HEIGHT 10’-0”H)
INTEGRATION OF CUSTOM GLASS AVAILABLE
STC RATING
SEE STC GLASS CHART
TOLERANCE
+/- 3/4” OVER 10 LINEAR FEET AT FLOOR

FEATURES + BENEFITS OF CLIPPER ELANCE

  • Unique ability to convert from single glazed offset to double glazing in one slim extrusion profile.
  • Tight concealed gaskets
  • Flexible Leveling system for floor adjustability
  • Slim framed sliding and pivot doors
  • Code compliant engineering
  • Range of door types and finishes
    Competitive Pricing
  • Experienced In house team by top dealer
Documents
Name Download File Size
Clipper STC Ratings
Download 64.7 KB
